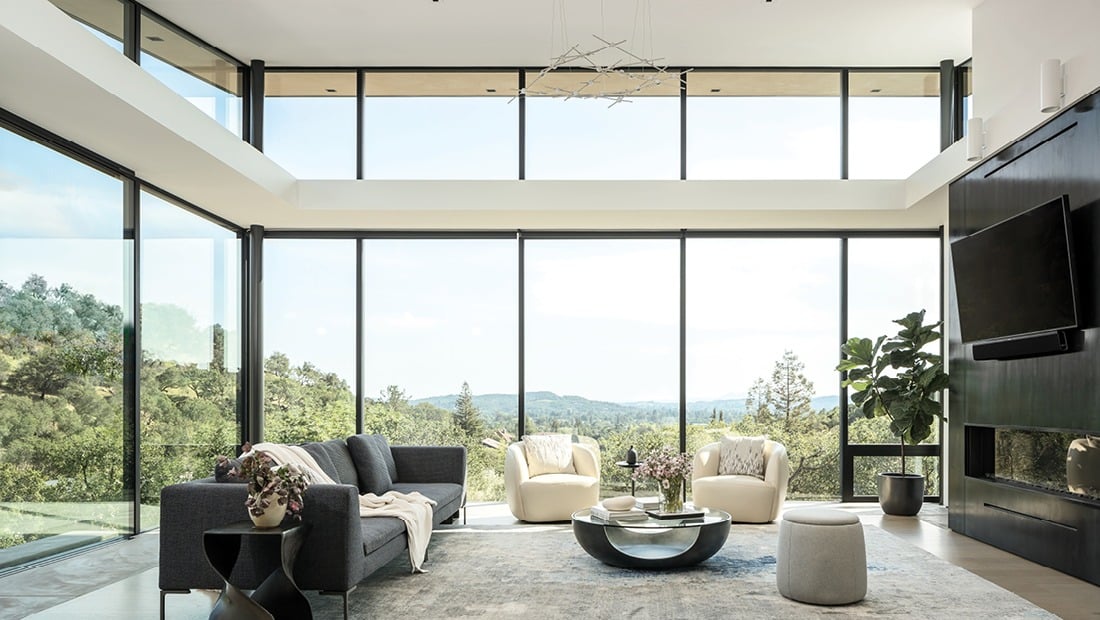

Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall with Awning Window Insert
Series 3800-T Fixed Window-Wall
Series 3800
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
Series 3800-
Series 3800-T Fixed Window-Wall
Series 3800-T Fixed Window-Wall
We designed the Series 3800-T fixed window-wall system as an alternative to commercial storefront. Designers and building professionals appreciate the sleek lines and scale of commercial storefront BUT prefer factory built systems because of the many benefits listed below. The Series 3800-T provides the sightline benefits of storefront with all the advantages of a factory built product.



The Series 3800-T is an adaptable product that offers everything from a simple fixed window to transoms, to elaborate grid window-walls with operable window inserts. The Series 3800-T is an ideal complement to any of our door products and is a wise choice over commercial storefront. We have provided a few comparative items below.

Product Highlights

Enhancing Design
Crisp, Linear Shapes:

Fleetwood’s design focus is the opposite of mass production. A prime example is the sharp edges and crisp lines created by a balance of hand tooling, automation, and dedicated machining.



Heavy Walls:

It does not take a professional to realize the hidden engineering in each Fleetwood system. The aluminum wall thickness greatly exceeds most, if not all other windows. Any user will immediately experience its sturdiness and palpable luxury.



Steel Window Look:

The Series 3800-T is offered with a simulated divided lite which resembles a classic steel window beveled design. This allows the “Steel Look” without the inherent complications and limitations of steel products.



More Glass:

Fleetwood’s Series 3800-T offers a 1-7/16” perimeter sightline, compared to a typical 2” frame for commercial storefront systems.

Superior Characteristics
Thermal Conductivity:

Aluminum is thermally stable in that it does not swell or shrink when the temperature or humidity levels change. Very little energy is lost through the frame material but in the case of wood and vinyl, energy is lost through the frame and vent seams after years of expansion and contraction.



Window Inserts:

A unique quality of the Series 3800-T is the option for operable window inserts. While, field-fabricated storefront can surface mount vents, creating a larger sightline and visible caulk joint. Fleetwood’s inserts are designed to dive into the frame, which reduces lines and metal.



Leak Prevention:

To assist builders with a waterproof installation we offer an integral nail-on fin as part of the frame. Other window manufacturers attach a separate add-on fin. This short cut can cause water leak issues years down the road.



Low Maintenance:

While every lifestyle product requires upkeep, Fleetwood products are resilient in even the extreme environments and come with a Lifetime Warranty.

Series 3800-T vs. Storefront
Warranty:

Fleetwood products comes with a Lifetime Warranty. Storefront is literally assembled on the jobsite and therefore does not have a factory warranty. Any “warranty” is provided by the installer.



Luxury Home Design:

The Series 3800-T was exclusively designed for luxury homes whereas storefront is designed for retail strip centers.



Quality Control:

Since storefront is built on the jobsite, the quality is dependent on the worker assembling the window and the quality of tools available to them. Fleetwood windows are made in controlled environments with dedicated Quality Control Engineers and Managers during every step of the manufacturing process.



More Metal:

Storefront relies on the installer to stuff rubber into all the seams, which results in uneven sightlines and gaps. The Series 3800-T comes factory glazed with unique glass stop sizes that conform to the glass instead of needing pushed-in vinyl that will curl and bleach.

Energy, Noise & Security
High Efficiency Glass:

Modern glazing from Fleetwood coupled with increasingly efficient insulation techniques allows a minimalist design with huge glass that does not compromise energy consumption.



Thermal Break Technology:

Fleetwood products with a “T” in the series number are manufactured with thermally broken aluminum for condensation control and energy efficiency. For over 30 years, Fleetwood has designed products around this now sweeping practice and does so with extensive testing and engineering so the product maintains the look for the ultimate minimalist.



Security Benefits:

Fleetwood endeavors to make products better instead of cheaper, resulting in specialty products that other manufacturers should not attempt. High-security laminated glass (like your car windshield) coupled with robust Fleetwood framing can withstand severe impact.



Noise Control:

Fleetwood chooses to offer a wide range of options instead of limiting features to increase profit and simplify production. Sound dampening upgrades to glass and products are available without affecting the budget or design.

Product FEATURES

Standard Features
Stock Anodized Finish: Black (Class 1) or Clear (Class 1)
1” Insulated Glass with Dark Bronze Spacer
6063 T-6 Extruded Aluminum
Poured & De-bridged Thermal Barrier



4-1/2″ Deep Nail-on Frame
Stainless Steel Assembly Screws
1/2″ Height Aluminum Sill Pan



Equal Sized Glass
Exterior Snap-in Glazing (Square Profile)

Optional Features
(See CAD Details for more options)



Finish:

    • Kynar 70% Paint (50% for dark colors, ex. Black)
    • Class 1 Custom Anodize (Light Bronze & Medium Bronze)

    Glazing: 9/16″, 1-1/4″ & 1-1/2″



    4-1/2″ Deep Equal Leg (Block) Frame
    Unequal Size Glass (TDL Alignment)
    Steel Look SDL

Configurations
Unlimited
Max Panel Width & Height
Max Panel Width: Determined by site wind loads

Max Panel Height: Determined by site wind loads

Technical Resources

Architectural Details
Architectural Detail Drawings



  • Anchor Location Worksheet (PDF)

Revit Families (BIM)
Revit Families (Dynamic)

  • Window-Fixed-Fleetwood-3800_T (RFA)



Revit Families (Static)

  • Window-Fixed-Fleetwood-3800_T-OGTF (RFA)

Florida Product Approval
Florida Product Approval

FL#16925 (GTF)
FL#14904 (Casement Inserts)
FL#14907 (Awning Inserts)

Energy Test Results
I. Standard Glass Table



Standard Glass Table

II. Additional Glass Testing:

NFRC Series 3800-T Exterior Glazed (PDF)

NFRC Series 3800-T Interior Glazed (PDF)

NFRC Series 3800-T NonTB (PDF)



Simulated Performance Alternative Reports are available upon request.



Spacers

  • A1 = Aluminum Spacer
  • SS-D = Stainless Steel Spacer
  • A2/TS-D = Warm Edge Spacers
  • ZF = Super Spacer



Default U-Values



Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.

Concept Drawings
Concept/Sample Drawings

  • 3800-T-C01 (3800-T_3070-T_TRANSOM TENSION BAR) (PDF) (DWG)
  • 3800-T-C02 (3800-T_3050 PX OPEN POCKET) (PDF) (DWG)
  • 3800-T-C03 (3800-T_3070-PXIXP OPEN POCKET) (PDF) (DWG)
  • 3800-T-C05 (3800-T_3070 PX OPEN POCKET) (PDF) (DWG)
  • 3800-T-C06 (3800-T_3070 XXXP OPEN POCKET) (PDF) (DWG)
  • 3800-T-C07 (3800-T_90 U-CORNER) (PDF) (DWG)
  • 3800-T-C09 (3800-T_3070-3in X 6in POST) (PDF) (DWG)
  • 3800-T-C10 (3800-T_3070-1.25in X 6in POST) (PDF) (DWG)
  • 3800-T-C11 (3800-T_TENSION ROD @ BUTT GLAZING) (PDF) (DWG)
  • 3800-T-C12 (3800-T_3000-TRANSOM) (PDF) (DWG)
  • 3800-T-C13 (3800-T_3800-T-1.25in.X6in. Alum Post w1in.X3.5in. Insert) (PDF) (DWG)

Weather Test Results
AAMA/WDMA/NAMI/HVHZ/ASTM

All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.



*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.



Current Test Reports:

011314+1886-96+Impact_3800-T_O_OOO_DP65_01991008: (PDF)

011314+AAMA_CSA-SI+Non-Impact+3800-T_O_OOO_01991007: (PDF)

011314+HVHZ_TAS+Impact+3800-T_O_OOO_01991006: (PDF)

041714+1886-96+Impact+3800-T_250-T_DP65_X_65x42_01991029: (PDF)

041714+AAMA_CSA-SI+Non-Impact_3800-T_250-T_DP65_X_65x42_01991028: (PDF)

041714+HVHZ_TAS+Impact+3800-T_250-T_X_65x42_01991030: (PDF)

062615+1886-96+Impact+3800-T_OOO_I-MULL_DP55_60+120x180_TEL01991314: (PDF)

062615+AAMA_Non-Impact+3800-T_OOO_I-MULL_DP55_60+120x180_TEL01991313: (PDF)

062615+HVHZ_TAS+Impact+3800-T_OOO_I-MULL_DP55_60+120x180_TEL01991312: (PDF)

092313+1886-96+Impact+3800-T_250-T_X_O_01990818: (PDF)

092313+HVHZ_TAS+3800-T_250-T_X_O_01990816: (PDF)

100109+AAMA+Non-Impact+3800-T_DP50_water12_Intesecting-tdl_120x120_94551.02-301-44: (PDF)

100313+AAMA_CSA-SI+Non-Impact+3800-T_250-T_DP65_X_42x84_01990815: (PDF)

100313+AAMA_CSA-SI_3800-T_250-T_X_O_01990817: (PDF)

101416+AAMA_CSA+Non-Impact+3800-T-00000-00000-00000_DP25_360x144_T16-095: (PDF)

111009+1886-96+Impact+3800-T_DP50_Non_Intersecting-tdl_120x120_94550.01-301-44: (PDF)

111009+AAMA_Non-Impact+3800-T_DP50_water12_Non_Intersecting-tdl_120x120_94550.02-301-44: (PDF)

111009+HVHZ_TAS+3800-T_DP50_Non_Intersecting_tdl_120x120_94550.03-301-18: (PDF)

111009+HVHZ_TAS+Impact+3800-T_DP50_Intersecting-tdl_120x120_94551.03-301-18: (PDF)

111109+1886-96+Impact+3800-T_DP50_Intersecting-TDL_120x120_94551.01-301-44: (PDF)

Comp_Analysis_3800_250_non-impact: (PDF)

Comp_Analysis_3800_non_impact: (PDF)



Archived Test Reports:

032503+AAMA+Non-Impact+3800-T_OO-OO_R20_144x96_A03F-043: (PDF)

051002+AAMA+Non-Impact+3800-T_OOO_C40_216x120_A02F-067_A02F-067: (PDF)

100202+AAMA+Non-Impact+3800-T_OO_HC60_144x72_A02F-177: (PDF)

120808+1886-96+Impact+3800-T_DP50_48x108_87278.02-109-44: (PDF)

120808+1886-96+Impact+3800-T_OA_DP50_81x72_87276.02-109-44: (PDF)
