PIVOT DOOR

Series 4400-T

Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door
Series 4400-T Pivot Door

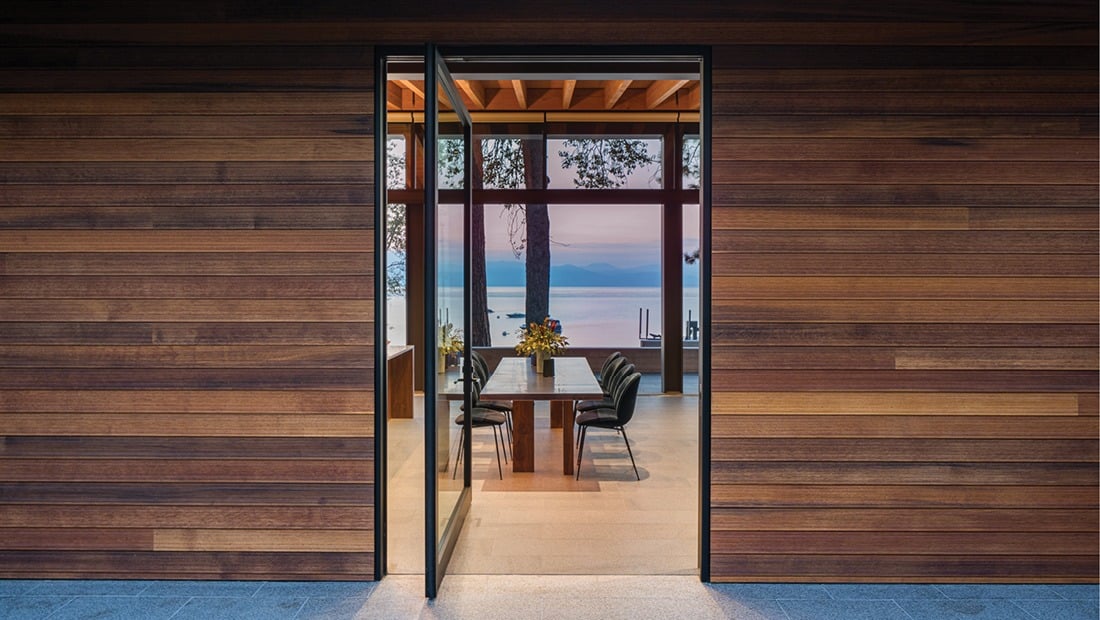

The Series 4400-T, a magnificent pivot door, is part of the Gen4 family and is the only door in its class. Designed for elite luxury houses, it boasts a weather rating and JUMBO sizes with a concealed In-Rail Closer. The patent pending sill design allows for a unabated flow of interior and exterior flooring.

Product Highlights

Enhancing Design
Floor-Through-Door Sill:

The 4070-T Patent Pending sill design has been engineered for the 4400-T, making the home’s finished floor the door sill, leaving ONLY a slim slot drain. This feature is gorgeous and provides ample weather tested performance.



Multi-Panel Option:

Not only is the 4400-T available in large widths, e.g. 12′, it can also be combined with several other panels for an even larger opening. With the ‘hold open’ feature of either the In-Rail (IRC) Floor Closer, these multi-panel openings are functional and dramatic.



Upper Floor Capable:

When the hydraulic In-Rail Closer is chosen, the Series 4400-T is feasible for upper floors, which historically has not been possible due to limited floor depth. The pivot anchor only requires 1-¾” floor penetration.



Adjustable Closer:

The hydraulic In-Rail Closer allows 3 custom operation adjustments:

  1. Open 90 Degrees Speed (slows down at 80-degree point)
  2. Final 30 Degrees Speed
  3. Final 10 Degrees Latching Speed

The three options are easily accessed from the underside of the bottom rail without removing the panel.

The “Little” Things
Residential Design:

In the aluminum pivot door world, only the 4400-T was designed for elite luxury residential applications. Competing products offer modified commercial doors that fail in performance and pale when comparing fit & finish.



Minimal Panel Stop:

One of many unique traits of the 4400-T is the beauty of the jamb and head panel stops. The stop slides into a concealed jamb groove and is attached from behind. When the stop is used in the head, the interior and exterior ends are finished with a cap.



Hidden Weather-Stripping:

During design, apt attention was given to hiding the needed weather-stripping as much as possible. The intention was for customers to only see aluminum and hardware while in a closed position.

Superior Characteristics
Slender Lines:

The vertical lines of each Series 4400-T are some of the narrowest on the market. The standard 4” stile is thinner than most and the optional 3-1/2” stile is in its own class.



Slender Jamb:

Each jamb is offered with a nail-fin or block frame preparation for installation. The flat shelf face allows the builder to bury 1” of the jamb so the wall-to-glass dimension is a slim 3-1/2″ when using the 2-Point Locking Hardware.



Large Sizes:

The sleek lines of the Series 4400-T are clear but strength is not compromised. Some may ask “How big can you make each panel?” Our response: “How big do you want it?” In most cases, the only limitations on size are dictated by the selected glass or closer.

Energy, Noise & Security
Energy Rated:

The Series 4400-T is one of the only energy rated pivot doors on the market.



Reduced Air/Insect Infiltration:

Most pivot doors bleed air, but the Series 4400-T comes standard with engineered weather barriers and a concealed drop seal for the bottom rail that prevents most of the air infiltration and annoying insect entrances.



Glazing Options:

Fleetwood offers the Series 4400-T in hundreds of glass choices, depending on the needs of the client. Whether the needs are security, more light, energy, sound control, tinting or custom glazing or panels, clients can choose from these thicknesses: 9/16”, 1”, 1 ¼ or 1 ½”.

PROPRIETARY HARDWARE

Archetype Floor Pivot

Archetype Floor Pivot (AFP)

The AFP is made of marine grade stainless steel and has two components. The solid base measures 3-5/16” x 4” x 7/8” and attaches to the slab structure with four 3-1/4” concrete screws. The top section is 7/16″ thick and is bolted to the base with four 1/4” x 1/2” stainless machine screws that allow ample adjustment before securing. Once the finished floor is completed, the lower portion is completely hidden inside the panel bottom rail.

Archetype Head Pivot

Archetype Head Pivot (AHP)

The Series 4400-T top pivot was designed and is manufactured by Fleetwood. Conventional head pivots use common steel and lack features expected in the luxury home arena. The Archetype Head Pivot (AHP) offers these features:

  • Constructed of 300 Series stainless steel (ideal combination of strength and corrosion resistance).
  • Stealthy design and the limited exposed stainless has a brushed finish to complement locking hardware.
  • The strongest pivot pin and adjustment arm for superior durability and ease of adjustment.
  • Extended length pin for greater security and wind load strength.

Product FEATURES

Standard Features
Stock Anodized Finish: Black (Class 1) or Clear (Class 1)
1″ Insulated Glass with Dark Bronze Spacer
6063 T-6 Extruded Aluminum
Strut Thermal Barriers



4-1/2″ Deep Nail-On Frame
Stainless Steel Assembly Screws
Welded Butt Joined Corners with Bolster Key
Weather Rated Finished Floor



Exterior Swing
Jamb & Head Stops
Concealed “In-Rail” Closer (FritsJurgens)
Archetype Floor Pivot
Archetype Locking Hardware
No Pulls
Exterior Keyed Lock

Optional Features

(See CAD Details for more options)



Finish:

    • Kynar 70% Paint (50% for dark colors, ex. Black)
    • Class 1 Custom Anodize (Light Bronze & Medium Bronze)

    Glazing: 9/16″, 1-1/4″ & 1-1/2″



    4-1/2″ Deep Equal Leg (Block) Frame
    Mechanically Secured Corners (Shipped KD)
    Sub-Floor Floor Closer (Rixson)
    Archetype Low Profile Floor Pivot
    Steel Look SDL



    Interior Swing
    Stainless Steel 2-Point Locking Hardware
    Archetype Actuator (no pulls) & Exterior Pull
    HOPPE Electronic Multi-Point Lock
    Custom FSB Levers
    Custom FSB Pulls

Configurations
H, HH
Max Panel Width & Height
Maximum Panel Weight: 1000 lbs.
Maximum Panel Width: 160″
Maximum Frame Height: 180″
(Max width & height are not necessarily available in combination)

EXCLUSIVE FEATURES

Archetype Head Pivot (AHP)
The Series 4400-T top pivot was designed and is manufactured by Fleetwood. Conventional head pivots use common steel and lack features expected in the luxury home arena. The Archetype Head Pivot (AHP) offers these features:

  • Constructed of 300 Series stainless steel (ideal combination of strength and corrosion resistance).
  • Stealthy design and the limited exposed stainless has a brushed finish to complement locking hardware.
  • The strongest pivot pin and adjustment arm for superior durability and ease of adjustment.
  • Extended length pin for greater security and wind load strength.

Luxury Hardware
The Series 4400-T offers several hardware choices. The standard offering is a 5-point latching system (5-PT) that secures the door from bottom to top. As with all of our other folding and hinged doors, the levers and escutcheon plates are by FSB. Consult the Optional Features section for other hardware choices.
Water Performance Sill
The Patent Pending Arche-Duct requires ONLY a thin slot drain that runs jamb to jamb. The 4400-T is available without the Arche-Duct if water performance is not required.

Technical Resources

Architectural Details
Architectural Detail Drawings

Revit Families
Revit Families (Dynamic)

  • Door-Pivot-Fleetwood-4400_T-H+HH+Sidelite (RFA)
  • Door-Pivot-Fleetwood-4400_T-HHH+ (RFA)

Florida Product Approval
Structural Ratings Help Sheet
Coming soon!
Energy Test Results
I. Standard Glass Table



Standard Glass Table



II. Additional Glass Testing:

NFRC Series 4400-T (PDF)

NFRC Series 4400-T Addendum (PDF)



Simulated Performance Alternative Reports are available upon request.



Spacers

  • A1 = Aluminum Spacer
  • SS-D = Stainless Steel Spacer
  • A2/TS-D = Warm Edge Spacers
  • ZF = Super Spacer



Default U-Values



Linked reports reflect current testing to NFRC standards. If you have a suggestion for testing an additional type of glass, please email your suggestion to sales@fleetwoodusa.com.

Sound Test Results
This door was designed for a luxury residence, which seldom requests sound test data. For comparative analysis only, we provide a Series 3200-T report.
Concept Drawings
Sorry, there are currently no Concept Drawings available for this product.
Weather Test Results

AAMA/WDMA/NAMI/HVHZ/ASTM

All testing was performed in a laboratory environment to determine results. These reports are provided to allow Engineers, Architects, and Design professionals reasonable expectations of products and may not illustrate every option, condition, or configuration available. These are for illustration and comparative analysis only.



*Reports exceeding 4 years may not have current 3rd party certification, and will not be labeled.



Current Test Reports:

093020+AAMA+CSA-SI+Non-Impact+4400T_X_144x120_T20-096: (PDF)
110821+86-96+Impact+4400-T_H_72x120_ 01993413: (PDF)
110821+A440+Impact+4400-T_H_72x120_01993412: (PDF)
110821+TAS+Impact+4400-T_H_72x120_01993414: (PDF)
